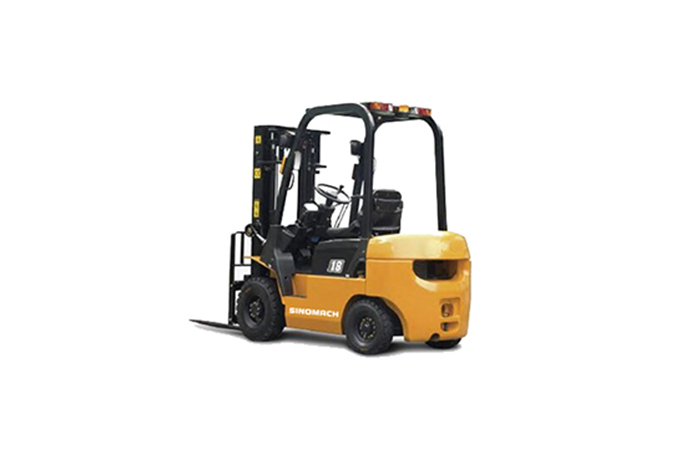

CPCD20 Diesel Forklift Truck

Engine Parts

Introduction

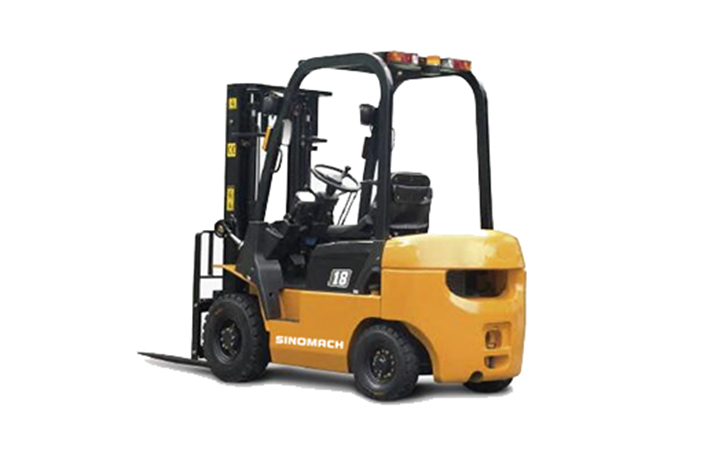

Due to state of the art appearance design, the forklift truck comes with streamline, dynamic and striking appearance.
Large covering part made by injection molding process makes the diesel powered forklift more elegant and user friendly.
With long wheelbase design, the forklift has better longitudinal stability and comes with an increased lifting weight. At the same lifting height, the average lifting weight is increased by more than 100kg over the original forklift. In addition, the load of real axle is reduced, thus extending the service life of steering wheel.
By means of reduction of machine size (reducing front and rear overhang size), the material handling equipment ensures a smaller turning radius and right angle stacking passage width, hence improving warehouse use ratio and providing suitability for use in containers.
Drive of the diesel forklift is available in Japanese OKAMURA, NISSAN and Chinese HC engines which feature best in class structure and reliable performance.

Features

Unbeatable Services

Testing and commissioning will be carried out before delivery

The delivery cycle conventional products is 30 days

Under warranty is One year after they are purchased or 2000 working hours.

Provide corresponding theoretical and practical training solution

Parameter

CPCD20 Diesel Forklift Truck Parameter

General	Type						RW6	RW6B	RW10	RW10B	RW13	RW15A	RW27	RW32	RW33	RW33B	RG2	RG5
	Power type						Diesel		Diesel		Diesel		Diesel		Diesel		Diesel
	Rated load(kg)						2000		2000		2000		2000		2000		2000
	Load center distance(mm)						500		500		500		500		500		500
Characteristics & Dimensions of Forklift Truck	Lifting height(mm)						3000		3000		3000		3000		3000		3000
	Free lift height(mm)						150		150		150		150		150		150
	Fork size mm(L×W×T)( mm)						1070×122×40		1070×122×40		1070×122×40		1070×122×40		1070×122×40		1070×122×40
	Mast tilt angle(F/R) degree						6/12		6/12		6/12		6/12		6/12		6/12
	Fork overhang(Wheel center to fork surface)( mm)						475		475		475		475		475		475
	Rear overhang(mm)						405		405		405		405	480	480		405
	Overall dimensions(mm)		Length (To surface of fork)				2530		2530		2530		2530		2530		2530
			Overall width				1155		1155		1155		1155		1155		1155
			Mast closed height				1985		1985		1985		1985		1985		1985
			Mast extended height				4045		4045		4045		4045		4045		4045
			Overhead guard height				2140 (2200*)		2140 (2200*)		2140 (2200*)		2140 (2200*)		2140 (2200*)		2140 (2200*)
	Turning radius (Outside)( mm)						2175		2175		2175		2175		2175		2175
	Min. width of right angle stacking aisle(including load length and clearance)( mm)						2650		2650		2650		2650		2650		2650
Performance	Speed	Travel speed (No load)(mm)					20.5		20.5		20	18	19.5	20	20		22	20.5
		Lifting speed (Full load) (mm/sec)					510		410		510	500	450	500	500		580	470
		Lowering speed (Full load) (mm/sec)					500		500		500		500		500		500
	Max. drawbar pull (Full load) (N)						25000		17000		22700	23100	22600	14500	18500	19700	187000	18000
	Max. gradeability (Full load) (%)						25		25		25		25		25		20	25
Chassis of Forklift Truck	Tyre(mm)					Front	7.00-12-12PR		7.00-12-12PR		7.00-12-12PR		7.00-12-12PR		7.00-12-12PR		7.00-12-12PR
						Rear	6.00-9-10PR		6.00-9-10PR		6.00-9-10PR		6.00-9-10PR		6.00-9-10PR		6.00-9-10PR
	Tread(mm)					Front	965		965		965		965		965		965
						Rear	970.5		970.5		970.5		970.5		970.5		970.5
	Wheelbase(mm)						1650		1650		1650		1650		1650		1650
	Ground clearance			Lowest point			105		105		105		105		105		105
				Wheelbase center			150		150		150		150		150		150
Weight	Dead weight(kg)						3440		3440		3440		3440		3440		3440
	Weight distribution			Full load		F/R	4815/625		4815/625		4815/625		4815/625		4815/625		4815/625
				No load		F/R	1640/1800		1640/1800		1640/1800		1640/1800		1640/1800		1640/1800
Power & Transmission	Battery			Voltage/Capacity (20HR)( V/Ah)			12/100		12/100		12/100		12/100		12/100		12/100
	Engine of forklift truck			Model			4TNV94L		C240PKJ-30		4JG2 PE-01	TD27	A498BT1	4TNE92-HRJ	4TNE98-BQFLC	4TNE98-BQFLC	C490BPG	A490BPG
				Manufacturer			YANMAR		ISUZU		ISUZU	NISSAN	XINCHAI	YANMAR	YANMAR	YANMAR	XINCHAI
				Rated output/rpm(kW)			43/2500		34.5/2500		46/2450	38.5/2300	36.8/2400	32.8/2450	42.1/2300	42.1/2300	40/2650	37/2650
				Rated torque/rpm(N.m)			205/1000		137.7/1800		186.3/1700	160/2300	186/1700	149.4/1600	186/1700	186/1700	162/1800-2000	148/1900
				Quantity of cylinder			4		4		4		4		4		4
				Bore×stroke(mm)			94×110		86×102		95.4×107	96×92	98×105	92×100	98×110	98×110	90×105	90×100
				Emission standard			Stage II/Tier2		Stage IIIA		Stage II	-	E-MAPK III	Stage IIIA/Tier 4 interim	Stage IIIA/Tier3	Stage IIIA/Tier3	-	-
				Displacement(cc)			3054		2369		3059	2663	3168	2659	3319	3319	2670	2540
				Fuel tank capacity (L)			60	60	60	60	60	60	60	60	60	60	60	60
	Transmission			Manufacturer			CHINA	OKAMURA	CHINA	OKAMURA	CHINA	NISSAN	CHINA	CHINA	CHINA	OKAMURA	CHINA	CHINA
				Type			Power shift	Power shift	Power shift	Power shift	Power shift	Power shift	Power shift	Power shift	Power shift	Power shift	Power shift	Power shift
				Gear	Forward/Reverse		1/1	1/1	1/1	1/1	1/1	1/1	1/1	1/1	1/1	1/1	1/1	1/1
Others	Operating pressure			For attachments(MPa)			17.5	17.5	17.5	17.5	17.5	17.5	17.5	17.5	17.5	17.5	17.5
