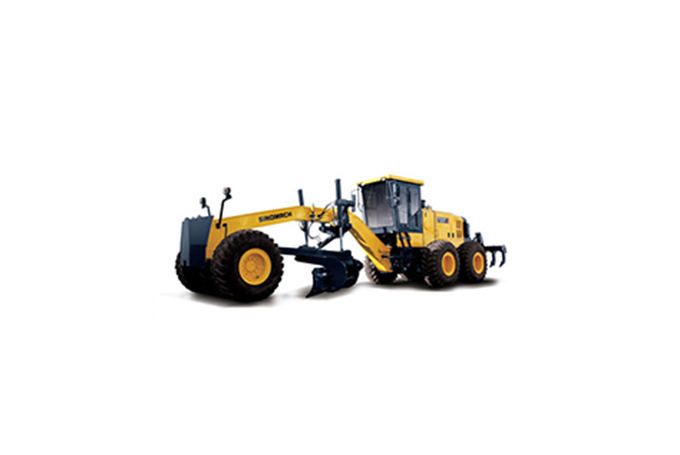

732T Motor Grader
732T Motor Grader

732T Motor Grader

Equipped with reliable Cummins QSM11-C330 engine
Single-handle electro-hydraulic controlled power-shift T/M, 6 forward & 3reverse shifts makes operation easy and convenient
Hydraulic lock, auto lock/unlock NO-SPIN differential ensures stability and powerful traction
Rated output(KW): 246
Operating weight(Kg): 28000
Product Details
Features
Parameter
Message
Customer Reviews
Engine Parts

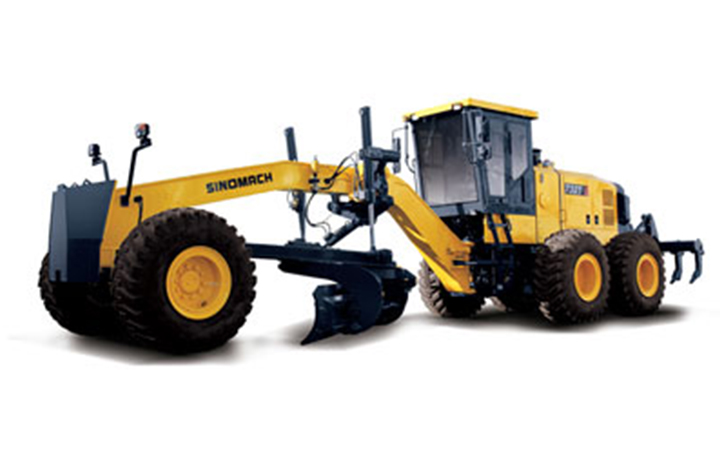

Introduction
Equipped with reliable Cummins QSM11-C330 engine
Single-handle electro-hydraulic controlled power-shift T/M, 6 forward & 3reverse shifts makes operation easy and convenient
Hydraulic lock, auto lock/unlock NO-SPIN differential ensures stability and powerful traction
Ideal axel load allocation provides excellent stability while cutting hard surface
Serviceable, efficient hydraulic system enables every part to be fully used
Box-typed frame and advanced T/M enable it to complete heavy-duty work
A wide working range is accomplished through flexible blade suspension system and articulated frame
Features
Unbeatable Services
Testing and commissioning will be carried out before delivery
The delivery cycle conventional products is 30 days
Under warranty is One year after they are purchased or 2000 working hours.
Provide corresponding theoretical and practical training solution
Parameter
732T Motor Grader Parameter
Basic specification
Engine model Cummins QSM11-C330
Rated power 246KW@2100rpm
Dimension(L×W×H) 12500×3300×3700(mm)
Operating weight(Standard) 28000KG
Performance specification
Travelling speed ,forward 5.5/8.6/13.3/20.3/29/43
Travelling speed ,reverse 5.5/13.3/29
Tractive force(f=0.75) 144KN
Operating specification
Max. steering angle of front wheels 49°
Max. lean angle of front wheels 17°
Max. oscillation angle of front axle 15°
Frame articulation angle 25°
Min. turning radius using articulation 9m
Blade
Maximum lift above ground 515mm
Maximum grading depth 735mm
Maximum blade position angle 80°
Blade cutting angle 23°~73°
Circle reversing rotation 360°
Moldboard width × height 4620×695mm
