Small pavers are widely used for municipal roads, indoor work, small area projects, etc.
Dongfeng Cummins EFI engine, strong power, high reliability; good low temperature start-up performance.
Equipped with full hydraulic automatic telescopic screed, paving width 1.8-4.5m stepless adjustable.

Rated output (kW): 93

Hopper capacity (ton): 8

Max. paving width (mm): 4500

Quote Now

Send Email

Product Details

Features

Parameter

Message

Customer Reviews

Quote Now

Send Email

Engine Parts

Introduction

The travel drive system adopts the imported hydraulic piston pump, planetary reducer and plunger motor, which has high reliability; the closed control controls the left and right independent drive modes to ensure stable running of the track drive system, flexible steering and convenient transition.
External multi-point propane gas heating device, reliable ignition, fast heating speed and uniform heat distribution, and automatic flame-off function for flameout, improving safety of use.

Features

Unbeatable Services

Testing and commissioning will be carried out before delivery

The delivery cycle conventional products is 30 days

Under warranty is One year after they are purchased or 2000 working hours.

Provide corresponding theoretical and practical training solution

Parameter

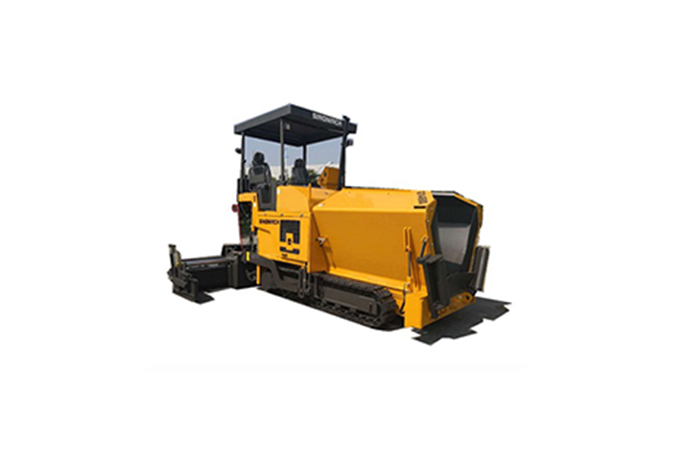

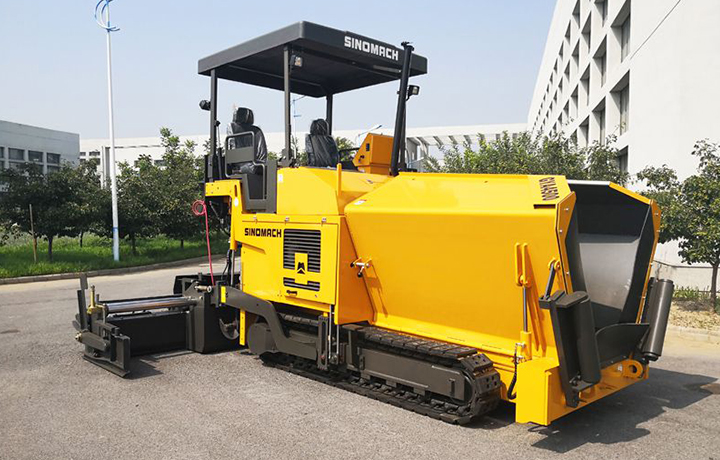

GYA4500 Asphalt Paver Parameter

Model	GYA4500
Length×Width×Height (mm):	5500×2050×3415
Total weight (kg):	10500
Engine	Cummins QSB 3.9-C125
Rated output (kw)	93
Basic paving width (mm)	2000
Max. paving width (mm)	4500
Max. paving thickness (mm)	200
Travelling type	Crawler
Travelling speed (km/h)	0-4.5
Paving speed (m/min)	0-20
Hoper capacity (t)	8

Besides the GYA4500 asphalt paver, SINOMACH have many other kinds of heavy construction and engineering equipment for sale.
