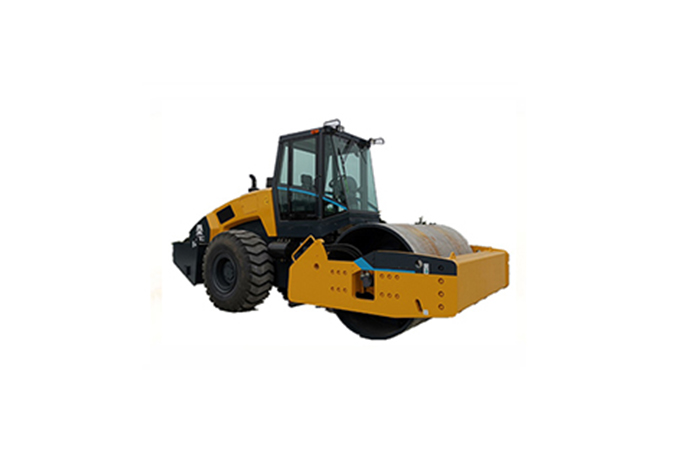

Single Drum Vibratory Roller GYD102
Single Drum Vibratory Roller GYD102

Single Drum Vibratory Roller GYD102

Hydraulic double drum drive, two-speed range and stepless speed change.
Vibratory roller: Hydraulic double drum vibration, electronic controlled delayed starting of vibration, great exciting force with high compacting efficiency;
Rated output(KW): 82
Centrifugal force (KN): 110/65
Operating weight(Kg): 10000
Product Details
Features
Parameter
Message
Customer Reviews
Engine Parts
Introduction
Hydraulic double drum drive, two-speed range and stepless speed change.
Vibratory roller: Hydraulic double drum vibration, electronic controlled delayed starting of vibration, great exciting force with high compacting efficiency;
Hydraulic steering, articulated frame with flexible operation.
Connective design for two anti-corrosive water tanks with large capacity, electronic control water spraying system, intermittent spraying.
Hydraulic service brake, Electronic controlled parking brake, brake release device which can be applied for dragging the machine for short distance.
Drive and vibration system are equipped with imported famous brand hydraulic components with reliable performance.
Features
Unbeatable Services
Testing and commissioning will be carried out before delivery
The delivery cycle conventional products is 30 days
Under warranty is One year after they are purchased or 2000 working hours.
Provide corresponding theoretical and practical training solution
Parameter
Single Drum Vibratory Roller GYD102 Parameter
Model GYD102
Length×Width×Height(mm) 4350×1900×3050
Operating weight (Kg) 10000
Drum width (mm) 1700
Static linear pressure (N/cm) 230
Vibration frequency (Hz) 40/46
Centrifugal force(KN) 110/65
Forward 0~5.5/0~11
Reverse 0~5.5/0~11
Diesel engine Cummins 4BT3.9-C110
Rated output(KW) 82
